In modern orthopedic, reconstructive, and implantological surgery, autogenous bone harvesting remains the undisputed "gold standard" for bone grafting procedures. Unlike synthetic ceramic substitutes (such as beta-tricalcium phosphate or hydroxyapatite) or allogeneic tissues, autogenous bone harvested directly from the patient delivers superior clinical efficacy due to its triad of biological properties: osteogenesis (supplying viable osteoblasts and stem cells), osteoinduction (containing endogenous bone morphogenetic proteins/BMPs), and osteoconduction (providing a natural three-dimensional collagenous mineral matrix).
However, the clinical success of autogenous bone transplantation is directly dependent upon the mechanical precision, thermal control, and particulate preservation provided by the harvesting instrument system. As a premier China Wholesale Bone Graft Harvester System Manufacturer & Factory, our engineering division focuses on resolving the critical trade-off in surgical bone capture: maximizing harvested bone volume while strictly preventing thermal necrosis and cell lysis during cortical and cancellous bone morbidity extraction.
Our OEM/ODM manufacturing facility integrates advanced Swiss 5-axis CNC machining, ultra-precise laser micro-welding, and medical-grade metallurgy to produce bone harvesting instrumentation tailored for dental implantology, sinus floor elevation, unilateral biportal endoscopy (UBE) spine surgery, and major orthopedic trauma reconstruction.
Specially engineered blade rake angles harvest cortical bone in 500–1000 µm curl chips, preserving ideal inter-particulate space for micro-vascular capillary ingrowth during early healing stages.
Integrated internal irrigation conduits and tungsten carbide heat-dissipating tips continuously flush the cutting edge, maintaining operational tissue temperatures strictly below 42°C.
Crafted from German DIN 1.4116 surgical stainless steel and Grade 5 Titanium (Ti-6Al-4V), offering validated structural integrity over 1,000+ steam sterilization cycles (134°C).
Selecting the appropriate bone harvester system depends heavily on surgical intent, anatomical harvesting site (e.g., mandibular ramus, chin, iliac crest, spinal lamina), and required graft volume. The table below highlights the performance parameters of our wholesale product lines:
| Harvester System Category | Primary Material Standard | Particle Size Yield | Ideal Surgical Indication | Sterilization & Supply Mode |
|---|---|---|---|---|

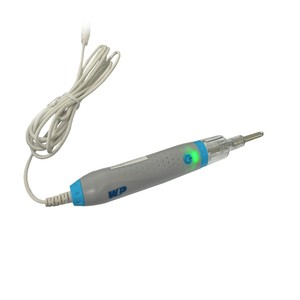

| Disposable Electric Bone Harvester | Medical-Grade ABS / SS316L Blade | 600 - 900 µm Fine Granules | Orthopedic Trauma & Major Reconstructive Surgery | Gamma-Sterile Single-Use Packaged |

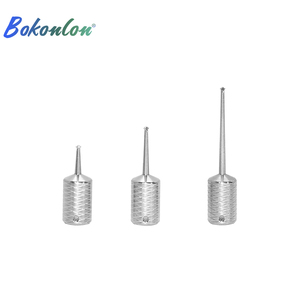

| Sinus Lift Graft Collector Kit | Tungsten Carbide Edge / Titanium Body | 500 - 800 µm Cohesive Chips | Maxillary Sinus Floor Augmentation | Autoclavable Reusable / Modular Set |

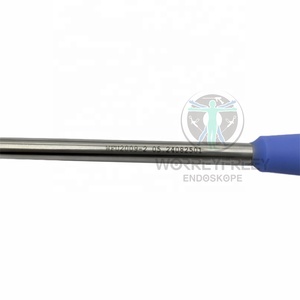

| UBE Spine Push Rod System | German Stainless Steel (DIN 1.4116) | Direct Core / Block Placement | Intervertebral Disc & Foramina Fusion | Autoclavable Heavy-Duty Instrument |

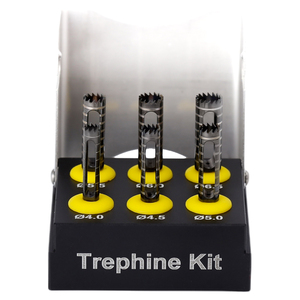

| Water-Cooled Internal Irrigation Kit | Surgical Grade Stainless Steel 316L | 700 - 1000 µm High Viability Chips | Oral Implantology & Ridge Expansion | Complete Modular Tray Set |

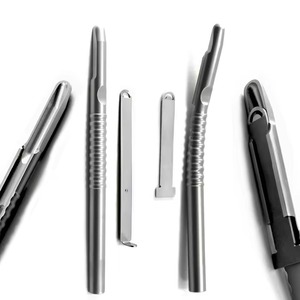

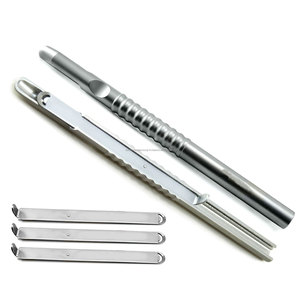

| Manual Straight & Curved Scrapers | High-Hardness German Stainless Steel | Curled Micro-Shavings | Localized Periodontal & Bone Defect Filling | Reusable / Replacement Blade System |
As international healthcare standards tighten under regulations such as the European Union Medical Device Regulation (EU MDR 2017/745) and US FDA 510(k) clearances, global distributors and hospital procurement groups are adjusting their supply chain criteria for surgical instruments. Key macro trends shaping the procurement of bone graft harvesters include:
High-volume surgical centers are increasingly adopting sterile pre-packaged disposable electric bone graft harvesters to mitigate cross-contamination risks and eliminate hospital central sterile supply department (CSSD) reprocessing expenses. Conversely, specialty dental and spine clinics demand ultra-premium reusable units equipped with replaceable tungsten carbide cutting blades that maintain micro-sharpness across hundreds of surgical procedures. China factories capable of supporting both single-use cleanroom injection molding and high-precision metal processing dominate global OEM contracts.
With the global shift toward Unilateral Biportal Endoscopy (UBE) and minimally invasive spinal fusion, bone graft harvesting has evolved from open iliac crest harvesting to local lamina and facet bone harvesting. Specialized push rods (e.g., 6mm*170mm dimensions) and endoscopic graft delivery cannulas are becoming mandatory components in spinal instrument sets. Manufacturers must ensure exact dimensional tolerances (±0.01mm) to compatibility with standard 4mm/30-degree endoscopic working portals.
Procurement teams are replacing legacy manual trephine drills with modern water-cooled internal irrigation drill kits. Built-in irrigation channels deliver sterile saline solution directly to the contact point between bone cutting flutes and cortical tissue. This prevents friction heat build-up, preserving enzymatic activity and native bone morphogenetic proteins (BMPs) critical for rapid graft integration.
The performance of a bone graft harvester system relies on advanced material selection and mechanical engineering. Modern manufacturing trends emphasize three core technological pillars:
To resist blade dulling caused by dense cortical bone contact, advanced Chinese manufacturers employ Diamond-Like Carbon (DLC) coatings and silver-soldered tungsten carbide inserts. DLC coating reduces coefficient friction to below 0.1, preventing bone tissue adhesion and significantly lowering operating temperature spikes.
Newer dental bone scrapers incorporate transparent polycarbonate collection chambers with integrated micro-mesh filters. Surgeons can visually inspect harvested graft volume in real time without opening the chamber. Additionally, ergonomic knurled handles engineered from Grade 5 Titanium provide optimal tactile feedback, allowing precise control over harvest depth (0.2mm to 0.5mm layer shavings).
Modern surgical workflows demand integrated collection systems where bone chips are directly harvested, stored, and mixed with platelet-rich plasma (PRP) or bone marrow aspirate concentrate (BMAC) within a single sterile container, minimizing atmospheric exposure and bio-contamination risks.
As a established leader among China Wholesale Bone Graft Harvester System Manufacturers & Factories, our facility offers turnkey OEM/ODM solutions backed by deep technical expertise and strict quality management systems:
Our Class 100,000 (ISO Class 7) cleanrooms support automated sterile packaging for disposable bone graft collectors, conforming strictly to international medical device packaging directives.
Equipped with high-precision CNC multi-axis milling centers and automatic sliding head lathes, we achieve microscopic tolerances (+/- 0.005mm) on bone drills, push rods, and internal irrigation ports.
Every raw material batch (German Stainless Steel 1.4116, Titanium Grade 5 ELI) undergoes spectro-analysis, passivation testing, corrosion resistance validation (ASTM F1083), and endurance cycling.
We provide full customization services, including laser marking of custom logos, tailored silicone instrument trays, specialized blade rake angle grinding, and custom packaging design for global brands and medical distributors.
Looking for reliable OEM/ODM factory pricing, customized surgical instrument production, or global distribution partnership? Contact our engineering and sales teams today.
