The Greater Toronto Area (GTA) serves as Canada’s primary hub for advanced musculoskeletal care, housing world-renowned trauma centers, sports medicine clinics, and academic health science networks such as Sunnybrook Health Sciences Centre, University Health Network (UHN), and Mount Sinai Hospital. As surgical volumes for complex intramedullary fixation, total joint arthroplasty, and ligamentous reconstruction continue to expand across Ontario, hospital procurement teams and biomedical engineers require uncompromising standards for surgical instrumentation.
As a specialized Cannulated Orthopedic Reamer Factory and Global Supplier serving Toronto, Remak Ortho Pvt Ltd bridges the gap between state-of-the-art European metallurgical engineering and cost-optimized direct-from-factory procurement. Cannulated reamers play a pivotal role in modern orthopedic trauma surgery. By utilizing a central longitudinal aperture (cannulation), surgeons can accurately guide flexible reaming shafts over a pre-placed guide wire (typically 2.0mm to 3.2mm Kirschner wire or ball-tipped guide rod). This minimizes bone displacement, protects soft tissue envelopes, preserves periosteal blood supply, and guarantees accurate coaxial alignment during long bone preparation (femur, tibia, and humerus).
The efficacy of a cannulated reamer relies entirely on material purity, dimensional precision, and stress-strain tolerance under high-torque surgical driving conditions. At Remak Ortho, our automated CNC sliding head machines and 5-axis Swiss-type milling centers operate within stringent physical tolerances to produce instruments that exceed international ISO 13485 and ASTM F138 standards.
Our instruments utilize premium medical-grade SS316L (UNS S31603), SS LVM (Low Vacuum Melted) stainless steel, and Titanium Grade 5 (Ti6Al4V ELI). SS LVM material undergoes double-vacuum remelting to eliminate non-metallic inclusions, maximizing fatigue resistance under cyclic bending loads experienced in curved femoral canals. Titanium variants provide optimal strength-to-weight ratios, ensuring minimal surgeon hand fatigue during prolonged arthroscopic or endoscopic procedures.
The flexible shaft of a cannulated reamer is engineered using interlocking laser-cut stainless steel modules or multi-wrap coiled spring-steel geometries. This allows smooth transmission of rotational torque through curved anatomical structures without binding, whipping, or dynamic chatter. The interior lumen maintains a consistent concentricity (inner diameter tolerance ±0.01mm) to ensure smooth travel over guide wires.
Parabolic chip grooves optimize bone debris extraction, reducing friction-generated thermal necrosis in bone marrow.
Compatible with standard AO, Zimmer-Hall, and Hudson power tool fittings widely utilized across Canadian operating rooms.
Passivated and electro-polished surfaces resist pitting corrosion over 500+ steam sterilization cycles at 134°C.
| Parameter | Trauma Intramedullary Reamer | Endoscopic ACL/Tibia Reamer | Veterinary (E100 Series) |
|---|---|---|---|
| Diameter Range | 6.0mm – 16.5mm (0.5mm increments) | 6.0mm – 12.0mm (0.5mm increments) | 4.5mm – 10.0mm |
| Cannulation Hole | Ø 2.5mm – Ø 3.5mm | Ø 2.4mm – Ø 3.0mm | Ø 1.5mm – Ø 2.2mm |
| Shaft Type | Monobloc Flexible / Modular Snake-Shaft | Rigid / Semi-Flexible Offset | Flexible Stainless Coil |
| Material Alloy | AISI 316L Stainless / Titanium Grade 5 | German Stainless Steel (X20Cr13 / SS316L) | Surgical Stainless Steel |
| Sterilization Standard | Autoclavable (134°C / 273°F at 2.1 bar) | Autoclavable (134°C / 273°F at 2.1 bar) | Autoclavable |
| Coupling Adapter | AO Quick Fitting / Synthes Compatible | Jacob’s Chuck / AO Fitting | Mini AO Coupling |
Toronto's healthcare sector operates under unique surgical demands driven by high-density urban populations, specialized sports medicine institutes, and level-1 trauma centers serving Southern Ontario. Remak Ortho’s cannulated reamer systems are engineered to address specific localized clinical workflows:

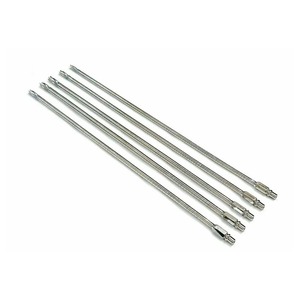

In high-energy polytrauma cases managed across Toronto trauma centers, rapid diaphyseal bone preparation for femoral and tibial intramedullary nails is vital. Our Flexible Reamer Sets (8mm–12mm and 7mm–16.5mm) provide clean, progressive bore expansion. The progressive diameter step-ups allow orthopedic trauma surgeons to ream precisely 1.0mm larger than the intended nail diameter, ensuring smooth implant insertion while maintaining cortex structural stability.

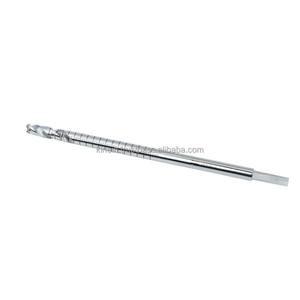

Toronto is home to elite athletic organizations and world-class sports medicine surgical centers. Arthroscopic ACL/PCL reconstruction procedures require precise femoral and tibial tunnel creation. Our Endoscopic Cannulated Tibia Reamer features laser-etched depth markings and razor-sharp cutting edges, enabling millimeter-accurate tunnel length measurement without risking soft tissue intra-articular damage.
Beyond human healthcare, Toronto hosts some of Canada's most advanced veterinary referral hospitals. Our Veterinary E100 Flexible Reamer Set meets the specific anatomical constraints of canine and feline fracture repair, providing veterinary surgeons with small-bore cannulated tools for TPLO (Tibial Plateau Leveling Osteotomy) and complex long-bone repair.
Procurement of medical devices in Ontario is governed by strict oversight under Health Canada regulations and institutional purchasing frameworks. Remak Ortho Pvt Ltd operates under an audited, fully integrated Quality Management System (QMS) aligned with Canadian medical device distribution expectations:
Every cannulated reamer unit undergoes ultrasonic cleaning, passivization treatment, and rigorous laser inspection for lumen concentricity and edge sharpness before cleanroom packaging. We supply full technical documentation packages—including biocompatibility test reports, steam sterilization validation studies, and Material Safety Data Sheets (MSDS)—to streamline institutional vendor approval across Ontario health networks.
As a global direct OEM factory and exporter serving North American distributors and healthcare providers, Remak Ortho delivers distinct operational advantages over intermediary supply brokers:
From raw bar stock machining to final laser etching, 100% of operations occur inside our ISO-certified facilities using state-of-the-art CNC/VMC machines.
We manufacture custom head geometries, specialized flute counts, unique drive couplings, and branded surgical instrument trays to client specifications.
By eliminating middle-tier distributor markups, Toronto health networks achieve substantial procurement savings without sacrificing clinical quality.
Our dedicated logistics hub ensures rapid, secure air freight delivery directly to Toronto Pearson International Airport (YYZ) or local Ontario distribution centers, complete with duty handling, HS code classification (HS 9018.90), and seamless customs clearance.
